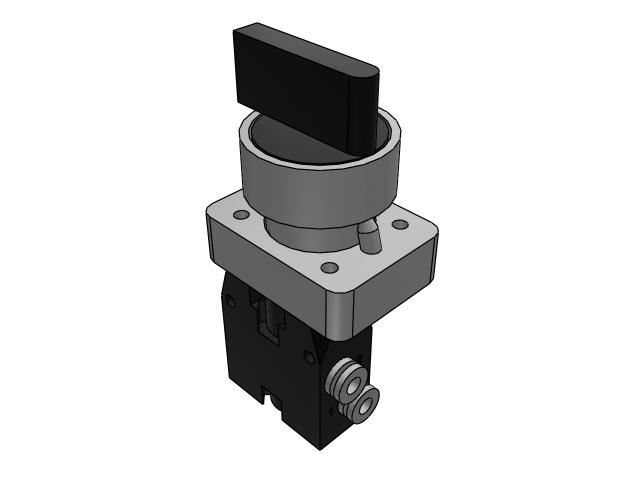

Manually actuated pneumatic valve, Push-in connector 4mm air port, Switch long lever, Two position, 2/2, Lateral connections, Normally closed

104.22.6.27.LC

Compare

Port	Push-In connector, 4 mm
Material	Polymer
Command	Manual
Actuator Type	Long Switch
Reset Method	Manual Bistable
Valve Diagram	2/2
Position of the Connections	Lateral Port
Function	Normally Closed
Flow	90 NL/MIN

104 Series.pdf
