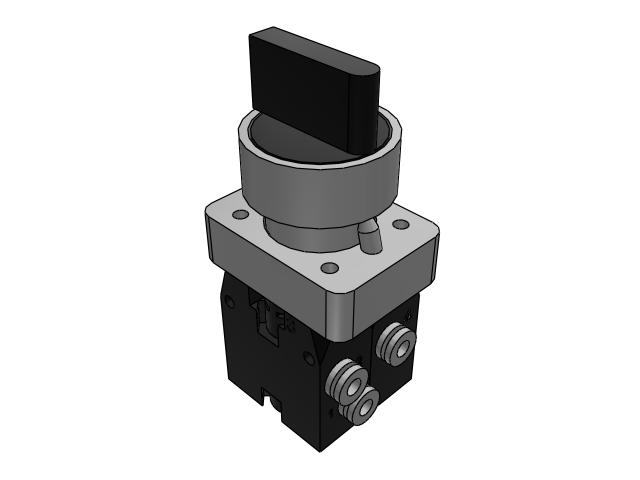

Manually actuated pneumatic valve, Push-in connector 4mm air port, Switch short lever, Three position spring centered, 5/3 open center, Lateral connections

104.53.32.6.30.0.L

Compare

Port	Push-In connector, 4 mm
Material	Polymer
Command	Manual
Actuator Type	Short Switch
Reset Method	3 Positions Spring Centered
Valve Diagram	5/3 Open Center
Position of the Connections	Lateral Port
Flow	90 NL/MIN

104 Series.pdf
